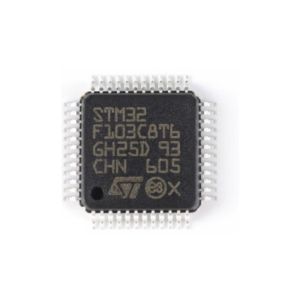

STM32F103C8T6 ARM Microcontrollers MCU 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC
Medium-density performance line Arm®-based 32-bit MCU with64 or 128 KB Flash, USB, CAN,7 timers, 2 ADCs, 9 com.interfaces
Features Arm® 32-bit Cortex®-M3 CPU core– 72 MHz maximum frequency,1.25 DMIPS / MHz (Dhrystone 2.1)performance at 0 wait state memoryaccess– Single-cycle multiplication and hardwaredivision Memories– 64 or 128 Kbytes of Flash memory– 20 Kbytes of SRAM Clock, reset and supply management– 2.0 to 3.6 V application supply and I/Os– POR, PDR, and programmable voltagedetector (PVD)– 4 to 16 MHz crystal oscillator– Internal 8 MHz factory-trimmed RC– Internal 40 kHz RC– PLL for CPU clock– 32 kHz oscillator for RTC with calibration Low-power– Sleep, Stop and Standby modes– VBAT supply for RTC and backup registers 2x 12-bit, 1 µs A/D converters (up to 16channels)– Conversion range: 0 to 3.6 V– Dual-sample and hold capability– Temperature sensor DMA– 7-channel DMA controller– Peripherals supported: timers, ADC, SPIs,I2Cs and USARTs Up to 80 fast I/O ports– 26/37/51/80 I/Os, all mappable on 16external interrupt vectors and almost all5 V-tolerant
Debug mode– Serial wire debug (SWD) and JTAGinterfaces Seven timers– Three 16-bit timers, each with up to4 IC/OC/PWM or pulse counter andquadrature (incremental) encoder input– 16-bit, motor control PWM timer withdead-time generation and emergency stop– Two watchdog timers (independent andwindow)– SysTick timer 24-bit downcounter Up to nine communication interfaces– Up to two I2C interfaces (SMBus/PMBus®)– Up to three USARTs (ISO 7816 interface,LIN, IrDA capability, modem control)– Up to two SPIs (18 Mbit/s)– CAN interface (2.0B Active)– USB 2.0 full-speed interface CRC calculation unit, 96-bit unique ID Packages are ECOPACK®Table 1. Device summaryReference Part numberSTM32F103x8 STM32F103C8, STM32F103R8STM32F103V8, STM32F103T8STM32F103xB STM32F103RB STM32F103VB,STM32F103CB, STM32F103TB
